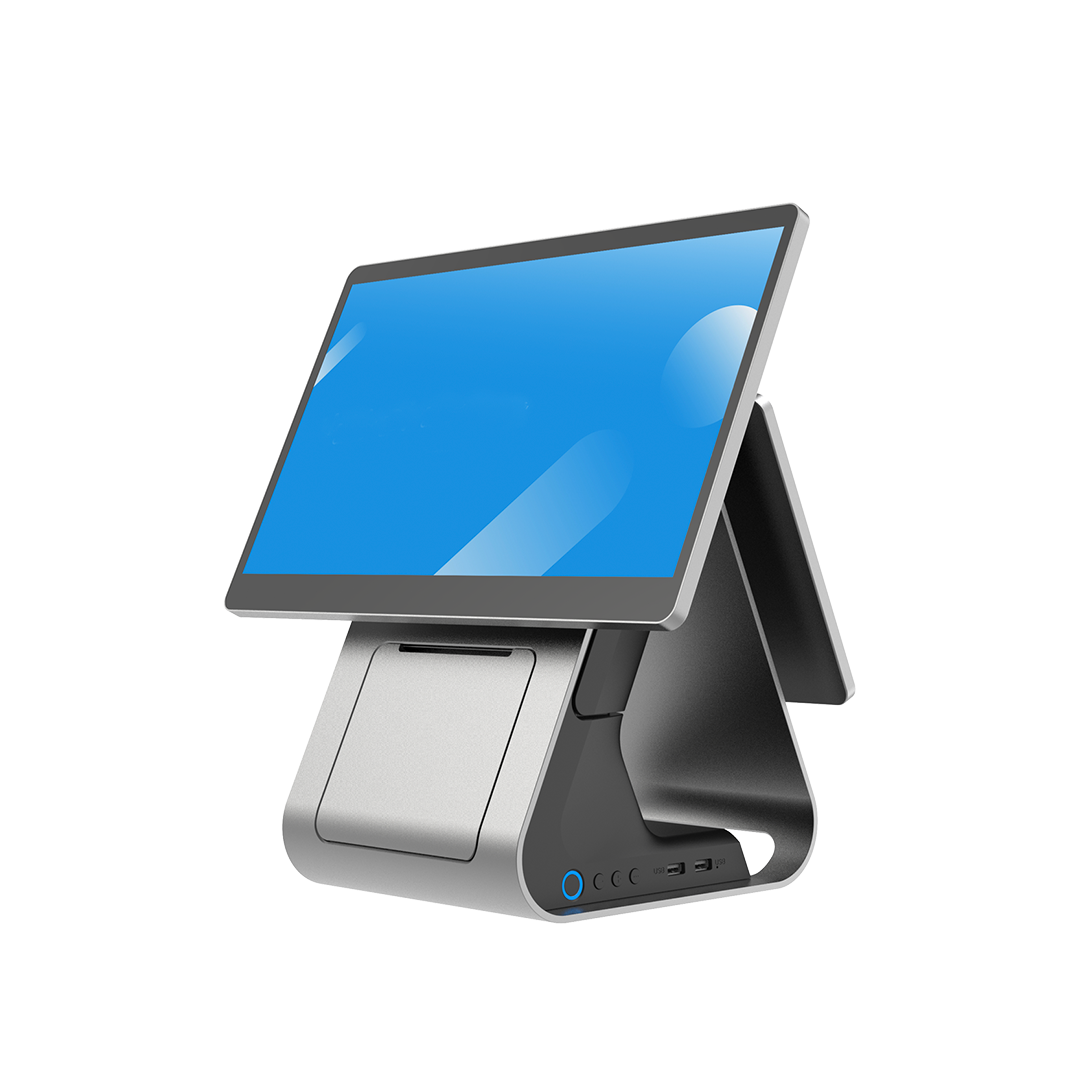

Elevate user experience to new heights with futuristic terminal.
Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2
Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)
Facial recognition (Optional)
Qualcomm Octa-core, up to 2.4GHz
Android 13 GMS
Internal: 4GB RAM+64GB FLASH 8GB RAM+128GB FLASH (Optional) External: Micro SD Card (Upto 2TB)
15.6",1920×1080,FHD capacitive multi-touch
Optional 1: None Optional 2: 10. 1" Standard CFD (1280×800 display only) Optional :3 10.1"Premium CFD (1280×800, Touch panel, OR Camera, NFC)
80mm Thermal Printer, Diameter:80mm Print speed:200mm/s, Auto Cutter
1USB Type-C, debug port, 4 USB Ipe-A2.0+1 USB I p - A3.0 1 RJ22 Serial port, 1 RJ45 Ethernet port, 1RJ11 Cash drawer port 1 3.5mm Audio port, 1 MicrosD slot 1Powerport
1Power key with indicator light (Red&blue) 2 Volume keys 1 Function key
23.5cm × 36cm x 36cm 9.25" × 14.17" × 14.17"
Wi-Fi: IEEE802.11 a/b/g/n/ac 2.4G and 5G ETH: 1000M Bluetooth 5.0, support BLE Optional, 4G fallback 3G and GPRS
80mm Thermal Printer, Diameter:80mm Print speed:200mm/s, Auto Cutter
Speaker: 5W, 100dB@1m, Dual Speaker Headset: 3.5mm audio jack MIC: Dual Microphone
Optional 1: None Optional :2 0.3M pixels, OR code scan (Only supported on the 10.1" Premium CFD) Optional 3: Facial recognition ability camera (USB device, plug into Main display edge exoansionc o n
Android NFC, ISO / IEC 14443. S O 1 3 6 7 3 compliant, support type A / B, Mitare, Felica (Only supported on the 10.1" Premium CFD)
1SIM (Optional)
19~20V/3.254
Operatina temperature: 0'C to +40 °C Storage temperature: -20C to +60C Operating humidity: 10% to 90% non-condensing
CE/CB/FCC/IC/ROHS/WEEE
