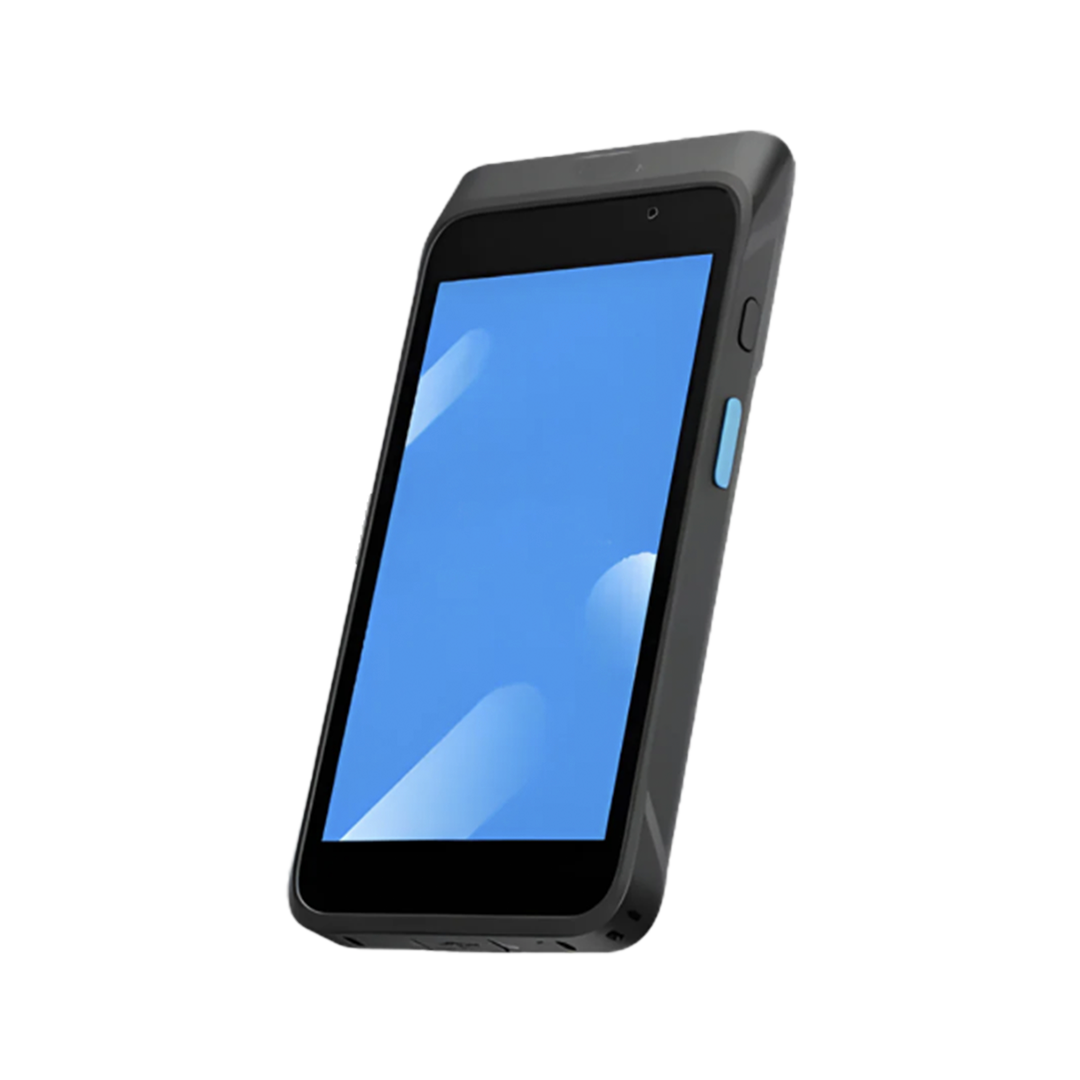

L-M10SE

Pocketable Android device with front-facing NFC reader and IP65 durability.

  • Front-Facing NFC: Equipped with front NFC for smooth, customer-facing contactless transactions-perfect for retail and transportation scenarios.

  • Business-Ready: Streamline tasks with a 5″ touchscreen and swappable battery

  • Durable by Design: With IP65-rated protection and 1.2m drop resistance, the M10 ES si built for demanding conditions.

  • Fully Connected: Stay in touch with comprehensive wireless options including 4G LTE, dual-band Wi-Fi, Bluetooth 5.0, GPS, and NFC

  • Versatile Performance: Equipped with a quad-core processor, dual SIM slots, and a 5MP camera for OR scanning, it’s perfect for retail, logistics, field service, and more.

  • Powerful processor for smooth operation ( Quad-core, 2.0GHz)

  • Swappable battery on duty (3000mAh/3.7V)

  • Comprehensive Connectivity options (2G/3G/4G, Wi-Fi, GPS, Bluetooth 5.0)

  • 5M pixels rear camera for convenient OR code reading.

Download Datasheet

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

ONE COMMON KERNEL.

ONE INTEGRATION.

MULTIPLE ENVIRONMENTS

SPECIFICATIONS

Software Platform

Processor

A53 Quad-core, upto 2.0GHz

mobile

OS

Android 13 Android 14 (GMS)

Memory

MEMORY

2GB+16GB 3GB RAM + 32GB FLASH (GMS) Micro SD Card (Up to 2TB)

display

Display & Touchscreen

5", 480×854 Capacitive multi-touch

WIFI

NFC

Android NFC, ISO / IEC 14443 compliant, Supports Type A / B, Mifare, FeliCa

SCANNER

Scanner

• Optional 1 : NONE • Optional 2 : LANDI Scanner module

mobile

Keypad

1 Power key (Right Side) 2 scan code keys are located on each side (Optional)

audio

AUDIO

Speaker: 2W 95dB@0.1 m MIC: Single-MIC Headset: USB Type-C

CompositeLayer

Connectivity

Cellular: 4G fallback 3G and GPRS, Global band Wi-Fi: IEEE 802.11 a/b/q/n/ac 2.4GHz and 5GHz Bluetooth: Bluetooth 5.0,support BLE

Group 3791

Protection

1.2m drop tested
*Data from IANDI lab

Group 3795

Positioning

AGPS, GPS, Glonass, Beidou, Galileo

mobile

CAMERA

Front camera: 0.3M pixels fixed focus camera Rear camera: 5M pixels, autofocus and flashlight

slot

SIM/SAM Slots

2*SIM 1*SIM+1*eSIM (Optional)

CompositeLayer

Connection

1 USB-Type C 2.0
2 POGO pins

Group 3977

Certifications

CE, CB, FCC, IC, RoHS, WEEE

Path 16448

Protection

1P65 *Certified by FCI Lab 1.2 m drop tested *Data from LANDI lab

battery

Battery

Main Battery: 3.7V/3000mAh, Removable

Group 3795

Accessories (Optional)

•1+1 Charging Dock • Wrist Strap • Screen Protector • Rubber Boot

Group 3797

Environment

Operating temperature: -10°C to +50 °C Storage temperature: -20 C to +55 °C Operating humidity: 10% to 90% non-con-densing
