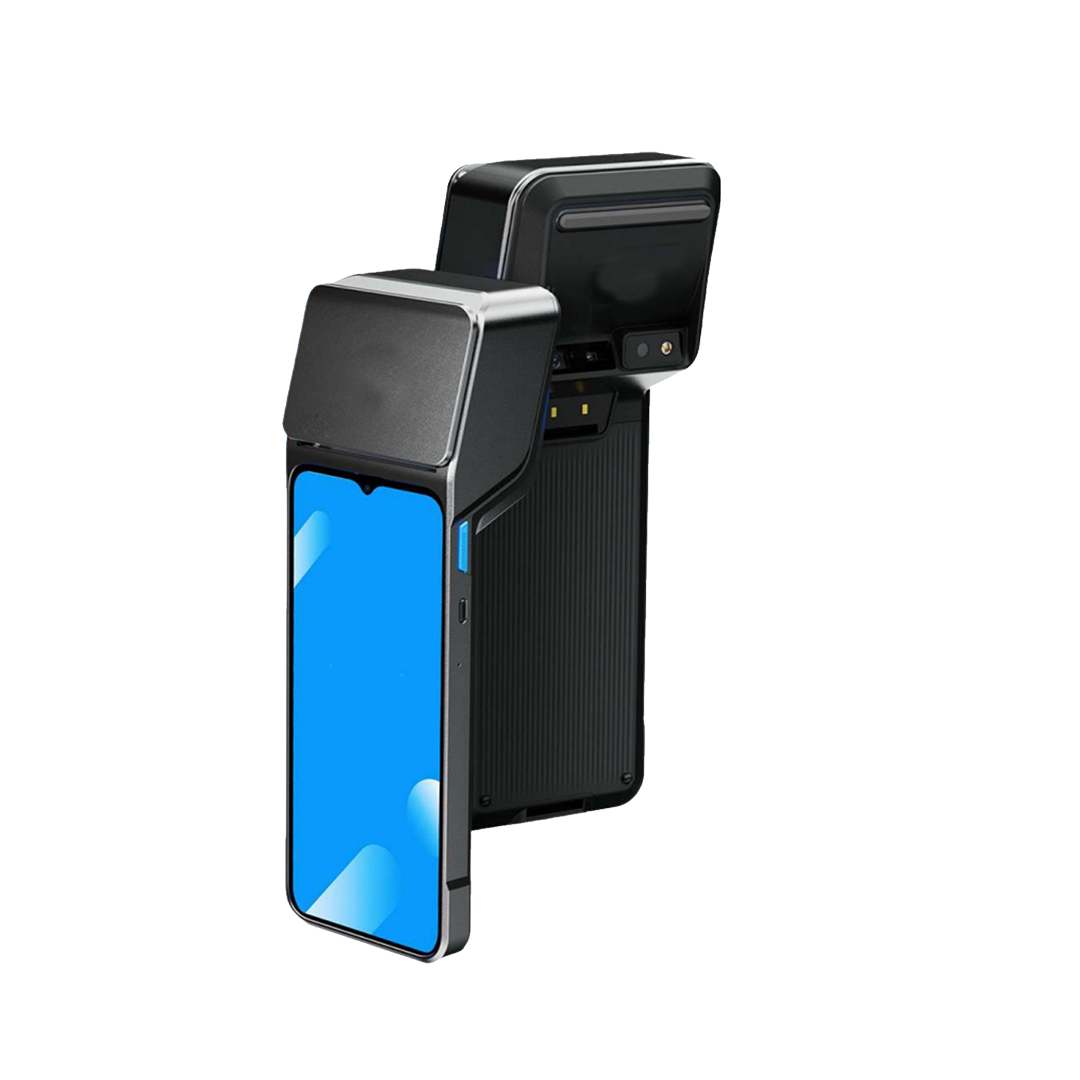

L-M20

Unleash peak performance for business anywhere and anytime

Thanks to its efficient printing capabilities, M20 can reduce the hassle associated with ticket and label printing.

  • Versatile mobile terminal powered by Android 13 for all mobile business needs.

  • Integrated printer for ultimate user convenience.

  • Compact design for ultimate portability Spacious 6.5″ touch screen and ergonomic interface

  • Powerful processor for smooth operation (Qualcomm Quad-core, 2.0GHz)

  • Heavy duty, swappable battery (3500mAh/7.2V)

  • Complete connectivity options (2G/3G/4G, Wi-Fi, GPS, Bluetoot5.O)

  • 5MP rear camera for convenient OR code reading.Optional front camera
Download Datasheet

Optional Accessories and Configurations

Heavy base provides convenient insert, swipe, or tap payments

Small footprint fits in any payment environment

Keeps device charged at all times

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

ONE COMMON KERNEL.

ONE INTEGRATION.

MULTIPLE ENVIRONMENTS

SPECIFICATIONS

Software Platform

Processor

Qualcomm Quad-core. 2.0GHz

mobile

OS

Android 13 (GMS Certified)

Memory

MEMORY

3GB RAM+32GB FLASH 4GB RAM+64GB FLASH (Optional) 2GB RAM + 16GB FLASH (Optional, No GMS) Micro SD Card (Up to 2TB)

display

Display & Touchscreen

6.5", IPS, 720×1600 HD capacitive multi-touch

printer

Printer

• 58mm Thermal Printer; DIameter: 40mm; Print speed: oUmm/s;
• Support label printing (Optional); Labelpaperspecs:30-38mmwide. ≥20mm high, 2mm wide gap

SCANNER

Scanner

• Option 1: None
• Option 2: LANDI Scan Engine
•Option 3: Honeywell Scan Engine**

mobile

Buttons

1 power key (Right side)
2 scan code kevs are located on each side (Optional)
2 volume kevs (Left side)

audio

AUDIO

Speaker:1W 90dB@0.1 m
Headset: USB Type-C MIC: Dual MIC

CompositeLayer

Connectivity

Cellular: 4G fallback G3 and GPRS, Global band
Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4G and 5G
Bluetooth: Bluetooth 3.0. support BLE

Group 3791

Protection

1.2m drop tested
*Data from IANDI lab

Group 3795

Positioning

GPS, GLONASS, BEIDOU

mobile

CAMERA

Front camera: optional,
2M pixels. TIXed Tocus camera, Torcode scanning Rear camera:>M pixels. autofocusand flashlight

WIFI

NFC (Optional)

Android NFC, ISO/IEC 14443, ISO15693 compliant, support Type A/B, Mifare, Felica

slot

SIM/SAM Slots

•2SIM +2SAM

CompositeLayer

Connection

•1USB Type-C
• 2PIN Pogo Pin

3

sensor

•G-sensor, support screen rotation automatic
• Light Sensor

Group 3742

PSU

5V/2A

battery

Battery

3500mAh/7.2V, removable

Path 16448

Size

1_235 c m W-Scm H_53 cm 9.25" x 3.15" ×2.09"

Group 3795

Accessories (Optional)

•Terminal charging base; •Battery charger support 4batteries) •Hand strap

Group 3797

Environment

Operating temperature: -10°C to +50°C
Storage temperature:-2010 + C
Operating humidity: 10% to 90% non- condensing

Group 3977

Certifications

CE/CB/FCC/IC/ROHS/WEEE/ GMS**
