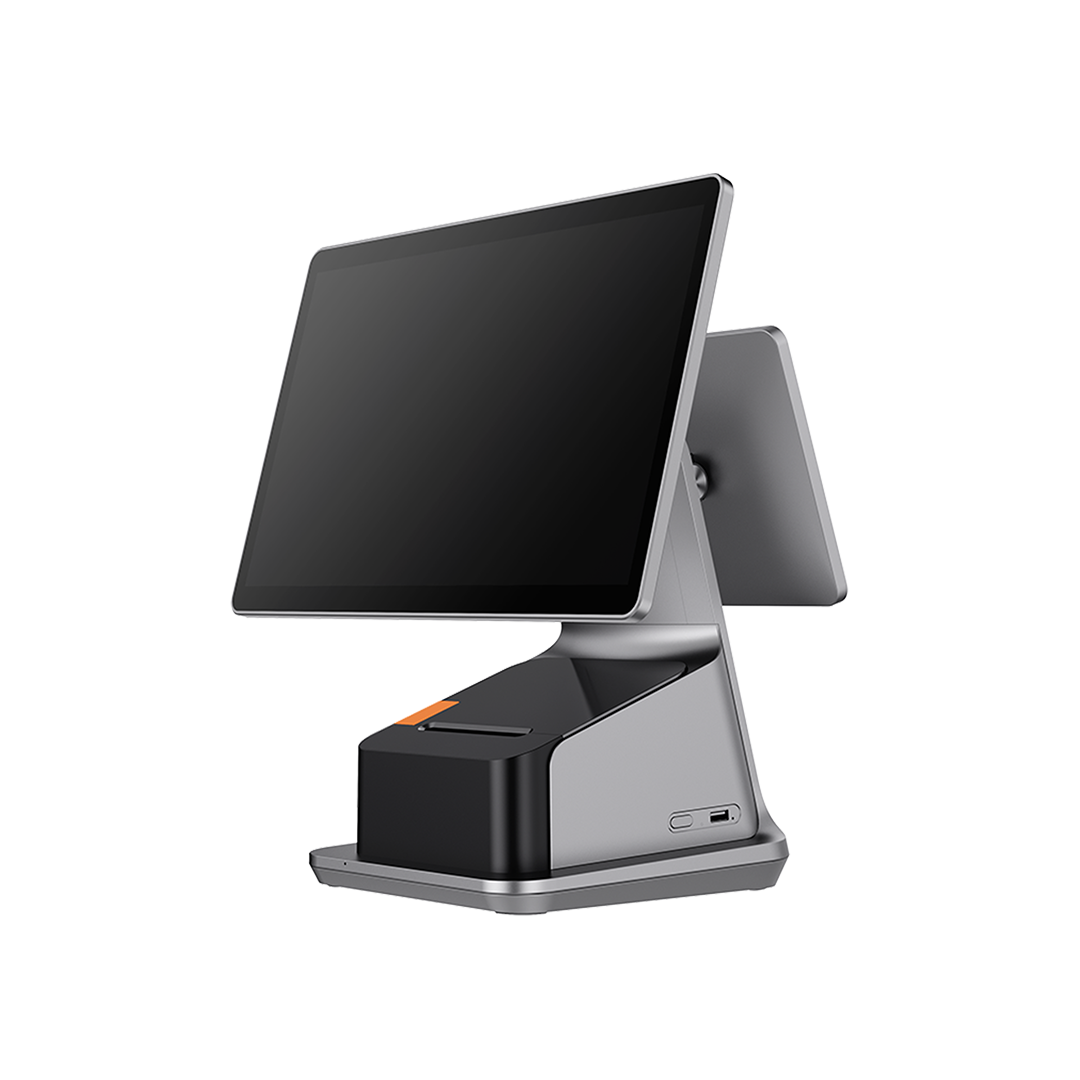

T-C9PD

Smart Desktop POS

  • Amazing Ultra-Slim Design 16mm display depth tapering to just 8.75mm at edges Exceptional 80% screen-to-body ratio delivers immersive experience
  • Professional Printing Perrormance High-speed 250 mm/s printing with automatic cutter for etticient receipt processing
  • Smart Modularity for Every Business Need Experience effortless configuration with versatile functional modules

  • Under-Display NFC
    Streamlined contactless payment experience with SoftPos compatibility

Download Datasheet

Optional Configurations

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

ONE COMMON KERNEL.

ONE INTEGRATION.

MULTIPLE ENVIRONMENTS

SPECIFICATIONS

Software Platform

Processor

Octa - Core 2.2 GHZ

mobile

OS

Custom OS (Based on Android 14)

Memory

MEMORY

4GB RAM 64GB ROM * 8GB RAM, 128GB ROM

display

Interface

4USB-A (3 USB 2.0+1 USB 3.0). | RJI(RS232), IRJI2, IRJ45, IDC Port, ITYPE C(Debug use). 1TYPE C(HUB Box) × 2Micro USB(10.1 Screen Extended Port)

display

Customer Display

10.1'', 1280*800, support touch, G + G
15.6'' * 1920*1080, support touch, G+G

power

Power Supply

12V/3A

mobile

Keypad

1 PowerKey

CompositeLayer

Wlan

802.Il a/b/g/n/ac (2.4GHz/5GHz)

Group 3787

Financial Card Reader

NEC: ISO 4443 Type A/B Mifare, EMV Contactless L1, Paywave, Paynass Smart Card: ISO 7816 (Install on the 10.1" customer display)

bluetooth

Bluetooth

Bluetooth 5.0, Support Classic & BLE

Group 3795

Ethernet

10/100/1000 Mbps

Group 3791

Operating Temperature

--10°C ~ 45°C

printer

Printer

Paper width 80mm, 080mm, With Auto Cutter

CompositeLayer

Storage Temperature

-25°C~ 60°C

Group 3735

Fingerprint button

CE/CB/FCC/IC/ROHS/WEEE/ GMS**

3

sensor

•G-sensor, Proximity Sensor
• Light Sensor

Group 3791

Humidity

5%RH~ 95%RH, Non condensing

Group 3767

Certification

CE, FCC, BIS

display

Display

15.6'', 1920*1080, support Touch G+G

audio

Audio

1Speaker 3W
2 Microphones
