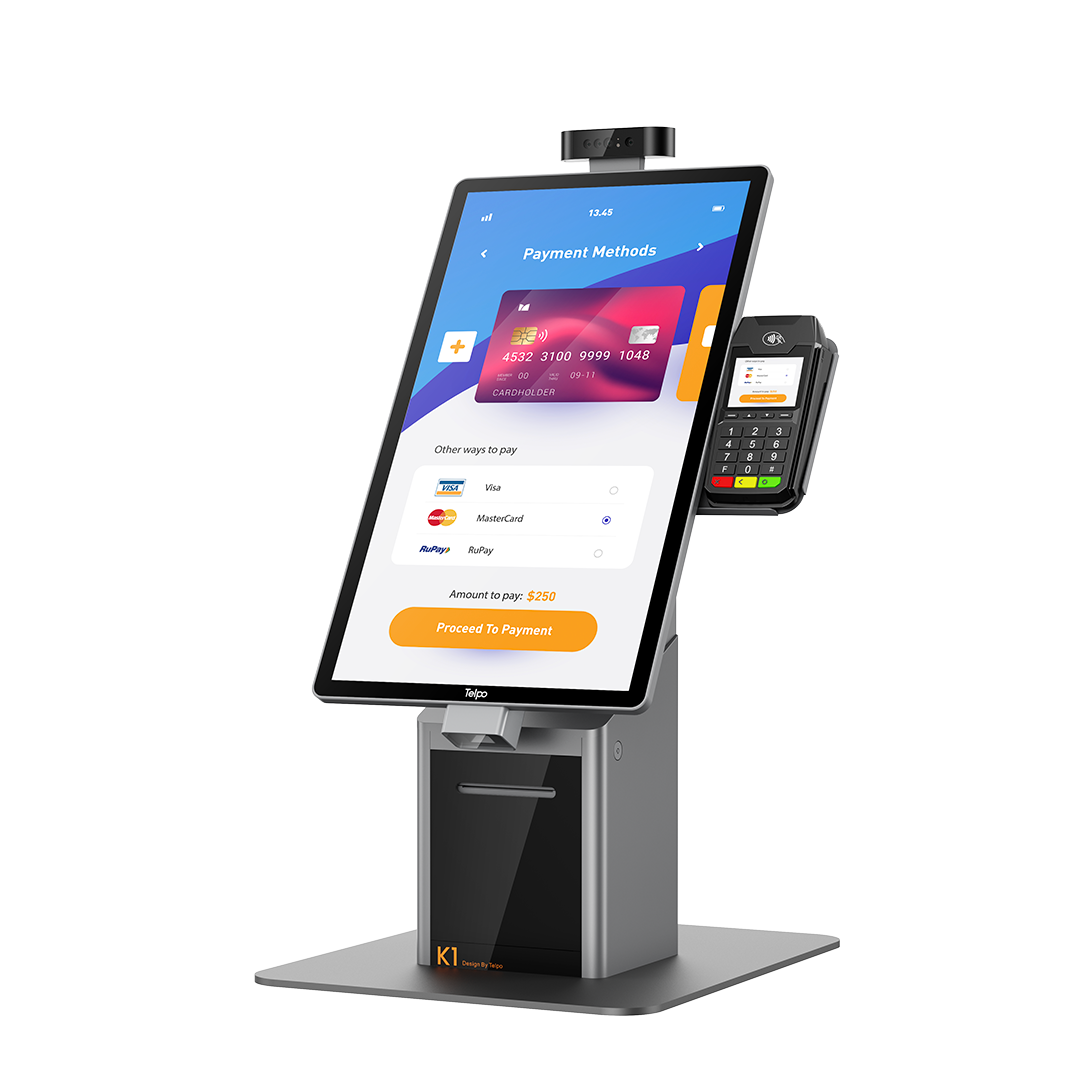

T-K1

Self-Service Kiosk

  • 21.5″ Multi-Touch Screen
    1920*1080 Resolution 400nits Brightness 178° Viewing Angle Range
  • Ultra-Fast Printing
    Epson Seiko Print Engines (Optional) 250mm/s High-Speed Printer 80mm Auto-Cutter Technology
  • Modular Design
    Seamlessly integrate different components to meet diverse requirements.
Download Datasheet

Versatile Installation Options

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

ONE COMMON KERNEL.

ONE INTEGRATION.

MULTIPLE ENVIRONMENTS

SPECIFICATIONS

Software Platform

Processor

Octa-Core 2.4GHz

mobile

OS

Custom OS (Based on Android 13)

Memory

MEMORY

4GB RAM, 64GB ROM 6GB RAM, 128GB ROM

display

Display

21.5", 1080*1920 Horizontal and vertical screen

communications

Communications

Wi-Fi 2.4GHz/5GHz (IEEE 802.lla/b/g/n/ac) Bluetooth 5.0 LE Ethernet 10/100/1000Mbps

CompositeLayer

Peripheral Ports

2 USB Type A 2.0, 2 USB Туре А 3.0, 1 RJ45

printer

Thermal Printer

Paper width: 80mm, 080mm, with auto cutter Print speed: 150mm/s

audio

AUDIO

Digital Audio Speaker

3

Camera

Cellular: 4G fallback G3 and GPRS, Global band
Wi-Fi: IEEE 802.11 a/b/g/n/ac 2.4G and 5G
Bluetooth: Bluetooth 3.0. support BLE

SCANNER

1D/2D Barcode Scanner

Support

Group 3761

Payment

Support

power

Power Supply

24V/2.5A

Software Platform

Stand

Floor-stand Desk-stand Wall-mounting

Group 3797

MDM

Mobile Device Management
