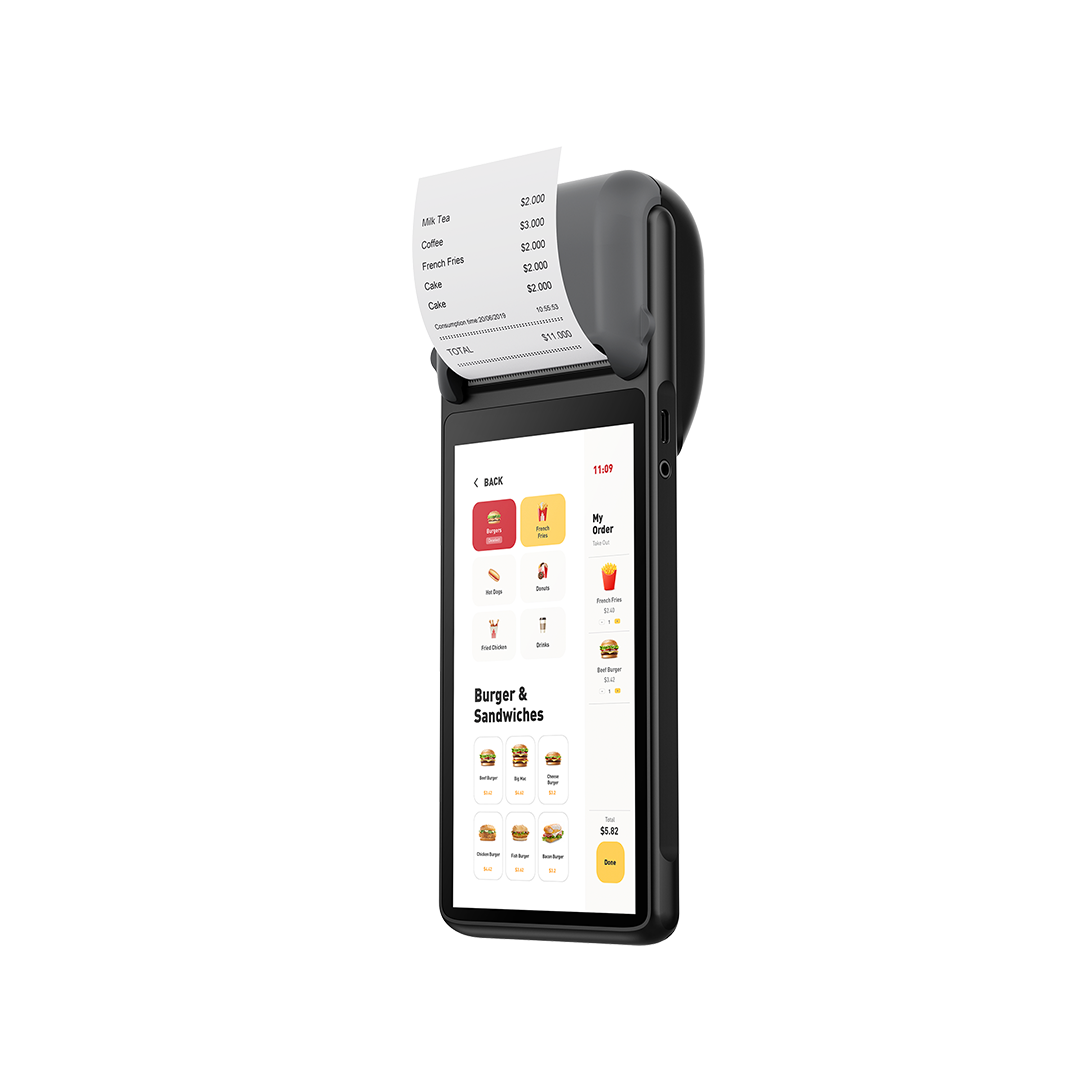

T-M1

Mobile POS Terminal

  • QR Code Payment

  • NFC Reader (Supports SoftPOs)

  • Moblie Wallets

  • Fast Printing

    Built-in 58mm thermal printer with 80mm/s printing speed

  • Long-Lasting Battery

    3500mAh removable battery ensures continuous operation while working

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

ONE COMMON KERNEL.

ONE INTEGRATION.

MULTIPLE ENVIRONMENTS

SPECIFICATIONS

Software Platform

Processor

Quad-Core 2.0GHZ

mobile

OS

Custom OS (Based on Android 12)

Memory

MEMORY

3GB RAM. 32GB ROM, Ext. TF card slot

display

Display

6*, 720*1440

Group 3730

Keypad

1 power key, 2 volume keys

chip card

Contactless Card Reader

ISOl4443 Type A/B, Mifare

power

Power Supply

5V/24

battery

Battery

7.6V/3500mAH, Li-ion (removable)

3

Camera

5M Pixel, auto focus (Barcode software decoding)

dimensions

Dimensions (mm)

220 (L)* 84 (w)* 46 (H)

Group 3764

2D Barcode Reader

Hard Decoding

CompositeLayer

MDM

Mobile Device Management

Group 3787

SIM Slots

1 Nano SIM × 2 Nano SIMs × leSIM

Group 3977

Certification

CE, FCC, ROHS, GMS

printer

Thermal Printer

Paper width: 58mm, 040mm

Path 4751

Communications

LTE/WCDMA/GPRS/Wi-Fi/ Bluetooth

CompositeLayer

Peripheral Ports

| Type-C (OTG), | Audio Jack

Group 3787

SAM Slots

1 SAM

Group 3791

Environmental

Operating temperature: -5 C - 45 C Storage temperature: - 25 C - 60 C

Group 3797

GPS

Built-in
