W-D22

Unattended Payment Kiosk

  • Wide range of payment types: Credit, Debit, Closed-loop, Pre-paid

  • Omni-channel payment: Chip insert, Contactless tap, E-wallet, Barcode scan

  • Certifications:PCI PTS, TQM, SRED, RoHs, FCC, CE EMV L1 & L2, EMV CL L1 PayPass, PayWave, ExpressPayD-PAS, Interac Flash L2, Jspeedy.

  • Remote management: Integrated terminal management system(TMS).

  • Integration options:Semi-integration with developer-friendly SDKs + APIs, All-in-one with apps running locally on the device
Download Datasheet

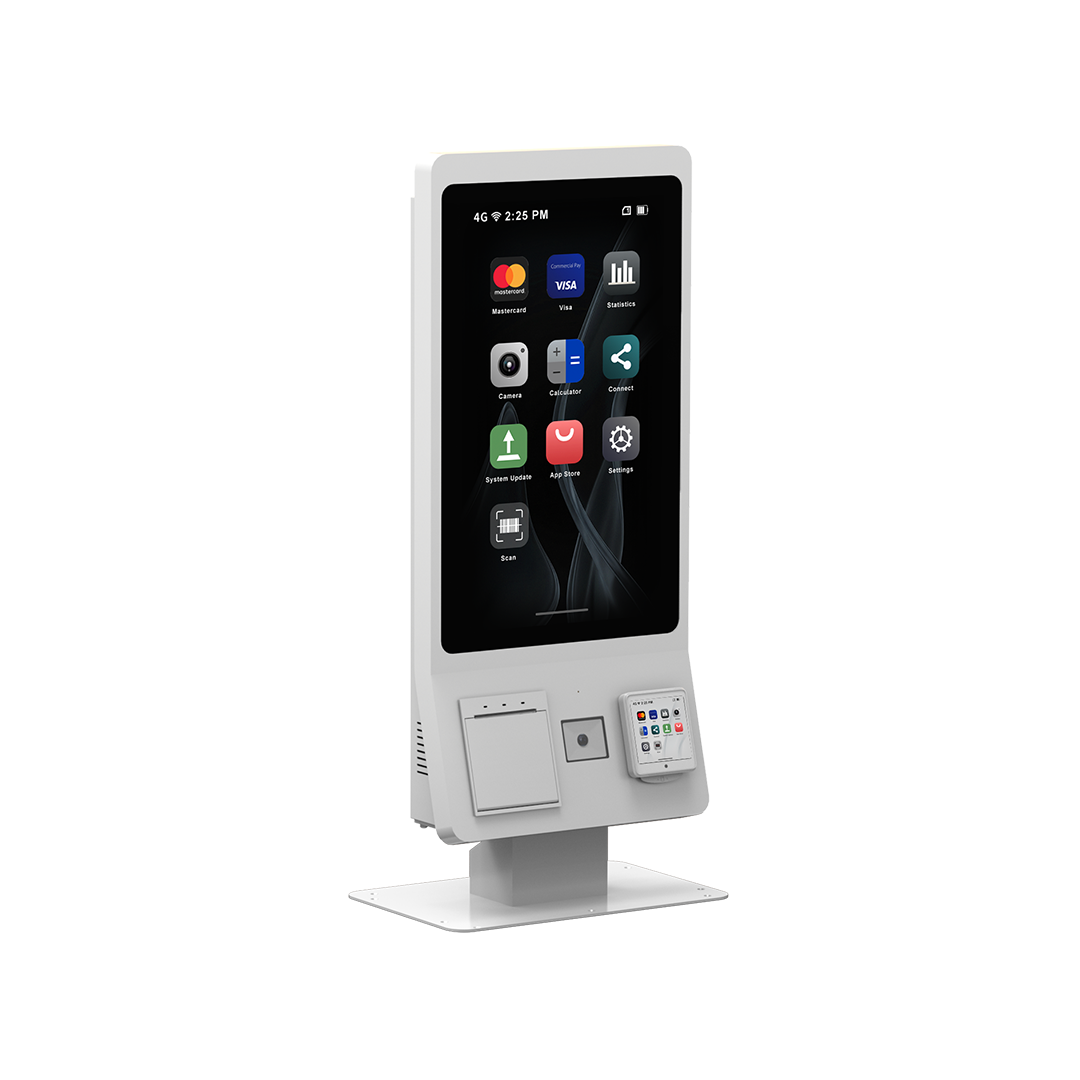

d22

Kiosk Terminal Use Cases

Convenience Stores

Dispensaries

Pharmacies

Realtors

Restaurants

Retailers

Ticketing
Kiosk Terminal-1

Display

21.5″ IPS 1920*1080 Pixels

FHD Touch Screen

Certifications

ISO 14443 Type A & B, MIFARE, SONY Felica, Contactless EMV Level 1, Mastercard TQM, MasterCard, PayPass, Visa payWave, American Express ExpressPAY, Discover D-PAS, Anatel, Interac Flash L2, Rupay, MIR, Jspeedy

On-Screen contactless payment

Camera

5 MP supports 1D and 2D
barcode scanning (Q3)

Slots

2* Speaker

Contactless

320(L) * 70(W) * 696.6(H) mm
(12.6 * 2.8 * 27.4 inches)

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

SPECIFICATIONS

Group 3791

Environment

Operation temperature:-20°C ~ 60°C

CompositeLayer

CPU

Cortex-A53 Quad core 1.6GHZ

Memory

Memory

4GB RAM + 64GB Flash

display

display

21.5" IPS 1920*1080 Pixels FHD Touch Screen

printer

Printer

80mm panel thermal printer, auto cutter; Paper Roll Diameter: 50mm (MAX)

WIFI

Communication

USB Type-A ×2,
USB Type-B ×1, RJ11 x1,
Ethernet x1, SD ×1, Audio jack ×1,
Power port ×1, Wi-Fi, BT 4.0

audio

Audio

Speaker ×2

Path 14188

Power

100 - 240V

SCANNER

Scanner

1D & 2D barcode scanning

Group 3765

Dimensions (L*W*H)

350 x 135.1 x 772.6 mm (13.78 × 5.32 × 30.42 inches) Dock (Optional): 550 × 420 × 1723 mm (21.65 x 16.54 x 67.83 inches)

weight

Total Weight

Body: 12Kg Dock: 12Kg(0 lb)

Group 3747

Payment Module

03 mini secure payment module
