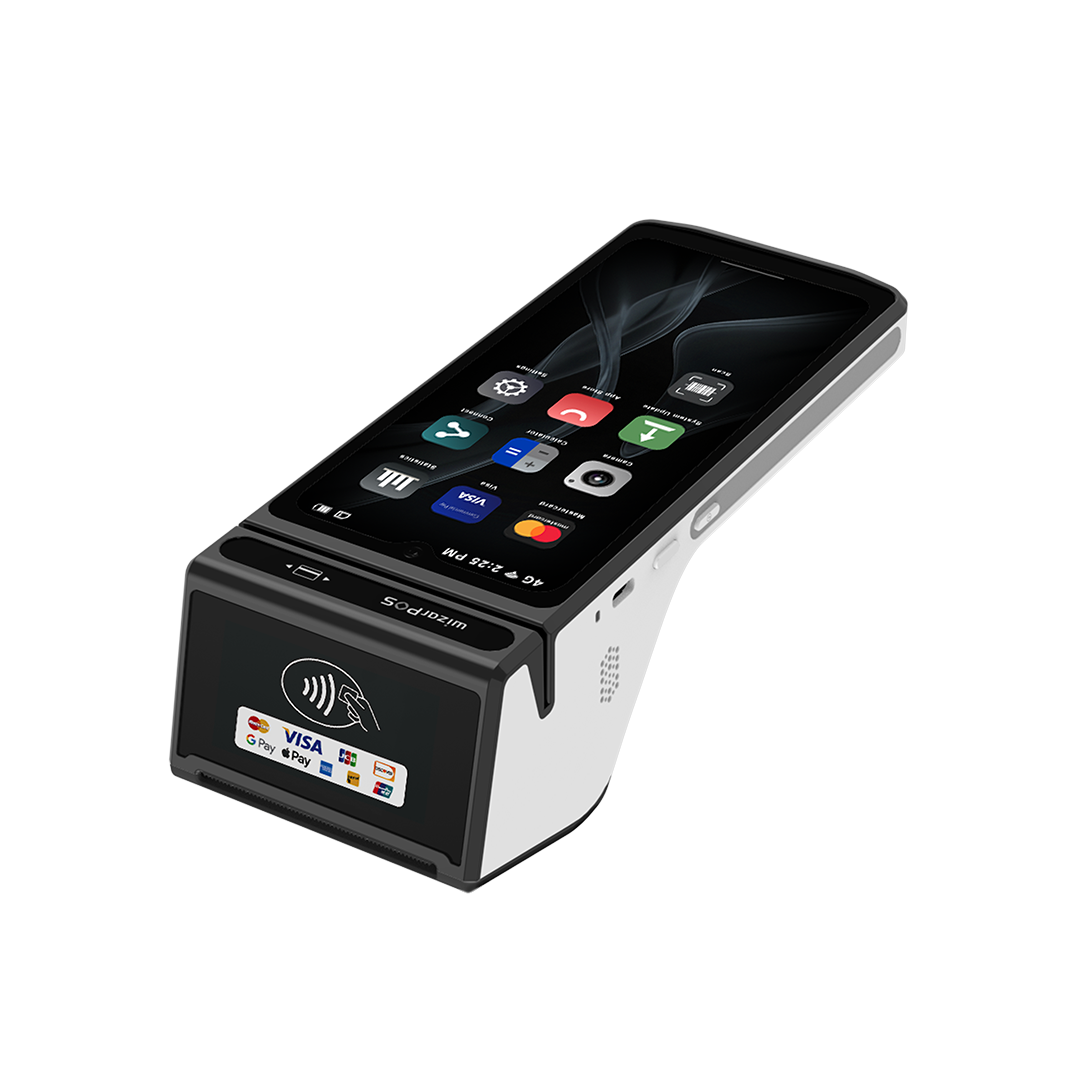

W-Q2Pro

Handheld Smart Terminal

  • Wide range of payment types: Credit, Debit, Closed-loop, Pre-paid

  • Omni-channel payment: Chip insert, Contactless tap, E-wallet, Barcode scan

  • Certifications:PCI PTS, TQM, SRED, RoHs, FCC, CE EMV L1 & L2, EMV CL L1 PayPass, PayWave, ExpressPayD-PAS, Interac Flash L2, Jspeedy.

  • Remote management: Integrated terminal management system(TMS).

  • Integration options:Semi-integration with developer-friendly SDKs + APIs, All-in-one with apps running locally on the device
Download Datasheet
W-q2pro

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

SPECIFICATIONS

Processor

Platform

Secure Android 14

CompositeLayer

CPU

Qualcomm Quad-Core @ 2.0GHz

Memory

Memory

2GB RAM + 32GB Flash

display

display

Main: 6.5"LCD panel (720 × 1600) Sub: 2" LCD panel (240 × 320) Contactless On Sub Screen

chip card

Card Slot

SIM x1 + TF x1 + PSAM x2 or SIM ×2 + TF x1 + PSAM x1

security

Security

PCI PTS certified

CompositeLayer

NFC Contactless

ISO 14443 Type A & B MIFARE Sony Felica

Group 3581

Chip card reader

Chip card reader: ISO 7816 EMV Level 1 & Level 2

Path 4751

Magstripe reader

ISO 7811, Track 1/2/3, Bi-direction

printer

Printer

High-speed 58 mm thermal printer

WIFI

GPS

GPS, A-GPS

mobile

Camera

Front-facing (Optional): 5MP or 13MP Rear-facing: 5MP or Scanner

Group 3014

Communication

GSM, WCDMA, FDD-LTE, TDD-LTE, Wi-Fi 2.4G/5GHz, BT 5.0, e-SIM (optional)

Path 14188

Power

5V2A adapter, USB charging, Charging cradle

Path 16448

Camera

Front: 2MP Back (Optional): 5MP

weight

Total Weight

370(0.82lb)

Group 3765

Dimensions (L*W*H)

80 x 199 × 16 mm (3.15 x 7.83 × 0.63 inches)

Group 3791

Environment

Operating temperature: -10°C ~ 50°C Storage temperature: -20°C ~ 70°C Relative humiditv (non-condense): 5% ~ 95%
