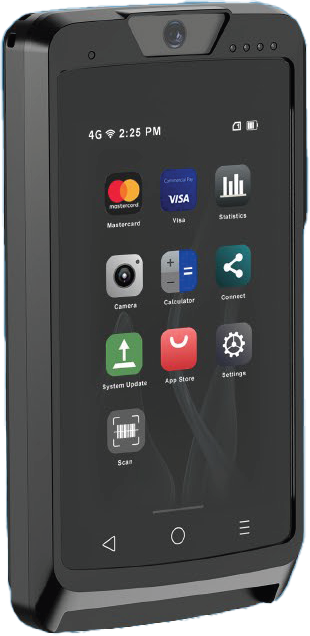

W-Q3

Handheld Smart Terminal

  • Wide range of payment types: Credit, Debit, Closed-loop, Pre-paid

  • Omni-channel payment: Chip insert, Contactless tap, E-wallet, Barcode scan

  • Certifications:PCI PTS, TQM, SRED, RoHs, FCC, CE EMV L1 & L2, EMV CL L1 PayPass, PayWave, ExpressPayD-PAS, Interac Flash L2, Jspeedy.

  • Remote management: Integrated terminal management system(TMS).

  • Integration options:Semi-integration with developer-friendly SDKs + APIs, All-in-one with apps running locally on the device
Download Datasheet
W-Q3

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

SPECIFICATIONS

Processor

Processor

Secure Android 14

CompositeLayer

CPU

Qualcomm and secure chip

Memory

Memory

2GB RAM + 32GB Flash

display

Main display

4" multi-touch color LCD panel (480 × 800)

chip card

Card Slot

SIM/SAM ×1, Micro SIM X1, TF card x1 (up to 64 GB)

security

Security

PCI PTS certified

CompositeLayer

NFC Contactless

ISO 14443 Type A & B MIFARE Sony Felica

Group 3581

Chip card reader

ISO 7816, EMV Level 1 & Level 2

Path 4751

Magstripe reader

ISO 7811, Track 1/2/3, Bi-direction

3

Camera

5-megapixel autofocus camera supports 1D and 2D barcode scanning

WIFI

GPS

GPS, A-GPS

Group 3017

Ports

USB Type-A, Serial (RS232), Ethernet, USB Type-C

Group 3014

Communication

GSM, WCDMA, FDD-LTE, TDD-LTE, Wi-Fi 2.4G/5GHz, BT 5.0, USB Type-C OTG, eSIM(Optional)

Path 14188

Power

5V 2A

Group 3765

Dimensions (L*W*H)

136.5 x 72 5 x 21 mm (5.2 x 2.85 x 0.83 inches)

weight

Total Weight

205g (0.45 lb)

battery

Battery

3.7V / 3000mAh Last for 10 hours

Group 3791

Environment

Operating temperature: -10°C ~ 50°C Storage temperature: -20°C - 70°C Relative humidity (non-condense): 5% ~ 95%
