W-Q3minUPT

Unattended Payment Terminal

  • Wide range of payment types: Credit, Debit, Closed-loop, Pre-paid

  • Omni-channel payment: Chip insert, Contactless tap, E-wallet, Barcode scan

  • Certifications:PCI PTS, TQM, SRED, RoHs, FCC, CE EMV L1 & L2, EMV CL L1 PayPass, PayWave, ExpressPayD-PAS, Interac Flash L2, Jspeedy.

  • Remote management: Integrated terminal management system(TMS).

  • Integration options:Semi-integration with developer-friendly SDKs + APIs, All-in-one with apps running locally on the device
Download Datasheet

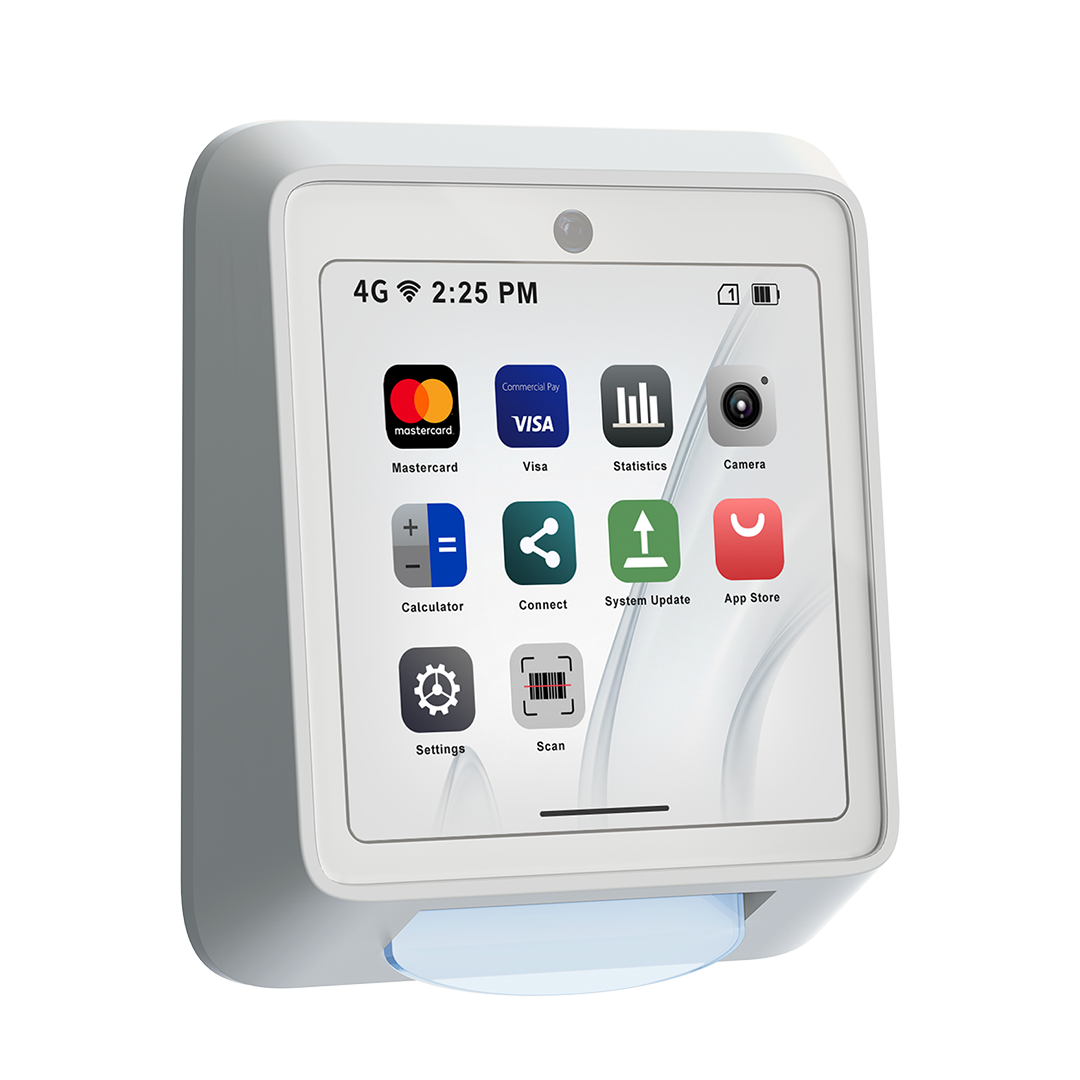

W-Q3minCPT

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

SPECIFICATIONS

Processor

Processor

Qualcomm Quad-Core @ 2.0GHz

CompositeLayer

OS

Secure Android 14

Memory

Memory

2GB RAM + 32GB Flash
4GB RAM + 32GB Flash (Optional)

display

Main display

4" TFT 480 x 480, IPS
covered with Panda Glass

chip card

Card Slot

SIM Slot x1, PSAM Slot x1, TE Slot x1

security

Security

PCI PTS certified

CompositeLayer

NFC Contactless

ISO 14443 Type A & B MIFARE Sony Felica

Group 3581

Chip card reader

ISO 7816

Path 4751

MSR (Optional)

ISO 7811, Track 1/2/3, bi-direction

3

Camera

1D & 2D barcode scanning

WIFI

GPS

GPS

Group 3017

Ports

MDB Slave ×1, R$232 X1, Digital 10 port ×1, Ethernet x1 USB-C ×1, USB-A x1,SMA x1,

Group 3014

Communication

WiFi 2.4/5GHZ, BT 5.0, GSM, 3G, 4G LTE, eSIM supported

Path 14188

Power

7V - 48V DC via MDB slave

Group 3765

Dimensions (L*W*H)

119.3x 102 × 48.23 mm (4.69 x 4.01 × 1.9 inches)

weight

Total Weight

310 g (0.68 Ib)

Group 3017

Ports

MDB Slave ×1, R$232 X1, Digital 10 port ×1, Ethernet x1 USB-C ×1, USB-A x1,SMA x1,

Group 3791

Environment

IP 65 dust /waterproof rating IK 10 vandal-proofing -35°C - 60°C operating temp

Group 3795

Cradle (Optional)

NAMA standard EVA EPS standard mounting plate DEX Cable

Group 3768

Buttons

Reset Key x1 Service Key x1
