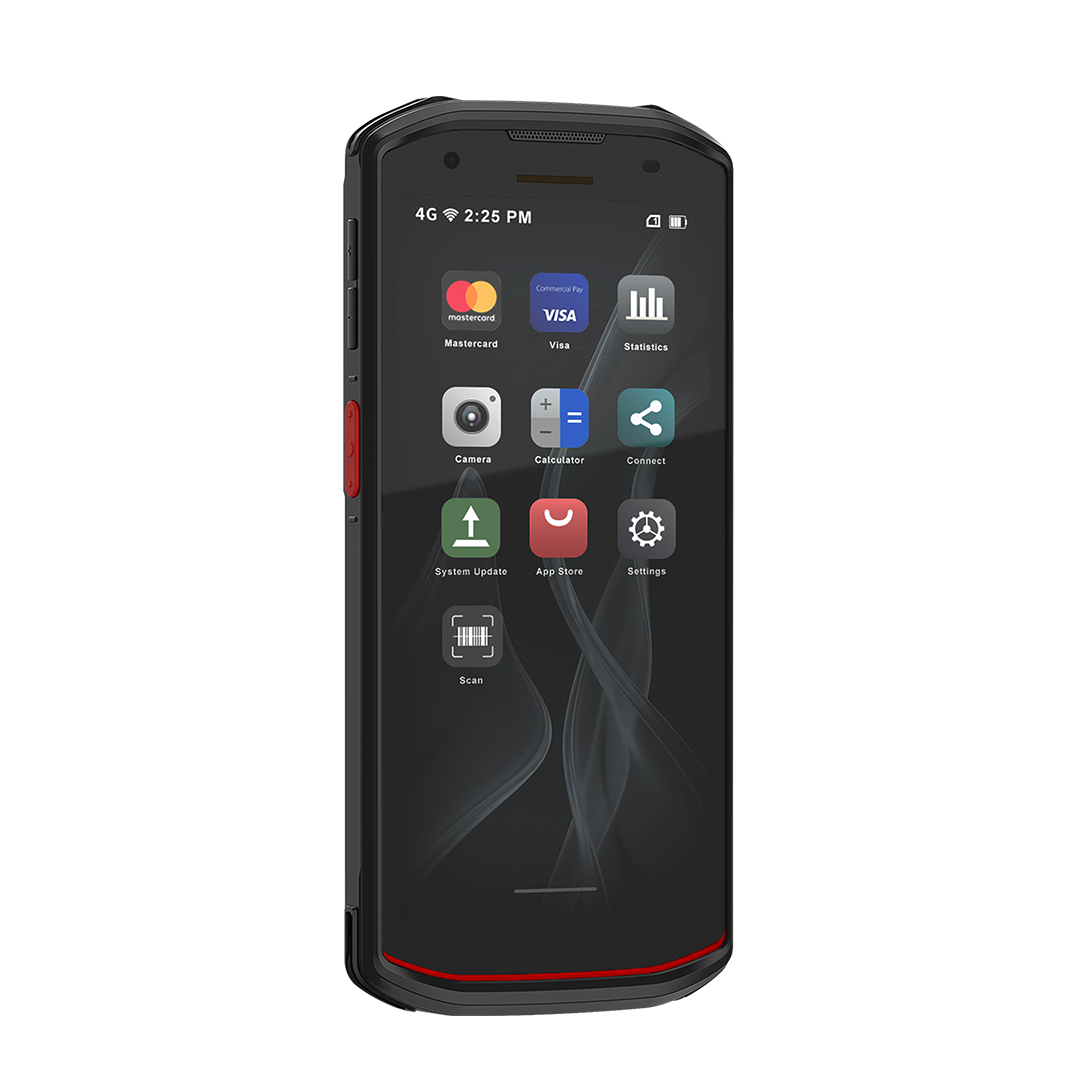

W-Q3PDA

Handheld Smart terminal

  • Wide range of payment types: Credit, Debit, Closed-loop, Pre-paid

  • Omni-channel payment: Chip insert, Contactless tap, E-wallet, Barcode scan

  • Certifications:PCI PTS, TQM, SRED, RoHs, FCC, CE EMV L1 & L2, EMV CL L1 PayPass, PayWave, ExpressPayD-PAS, Interac Flash L2, Jspeedy.

  • Remote management: Integrated terminal management system(TMS).

  • Integration options:Semi-integration with developer-friendly SDKs + APIs, All-in-one with apps running locally on the device
Q3 PDA_

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

SPECIFICATIONS

Processor

CPU

Qualcomm Quad-Core @ 2.0GHz

CompositeLayer

OS

Secure Android 12

Memory

Memory

4GB RAM + 64GB Flash

display

display

5.5" multi-touch color LCD panel (720×1440) Gorilla Glass ™ m 3

chip card

Card Slot

SIM Slot x1 SD solt ×1 or SIM Slot ×2

security

Security

PCI PTS certified

CompositeLayer

NFC Contactless

ISO 14443 Type A & B MIFARE Sony Felica

Group 3581

Sensors

Gravity, Gyroscope, Geomagnetism, Light & Proximity, Barometer (Optional)

Path 4751

Communication

GSM, WCDMA, FDD-LTE, TDD-LTE, Wi-Fi, BT 5.0, eSIM(Optional)

3

Camera

Front: 5MP Rear: 13MP high brightness flash

WIFI

GPS

GPS, A-GPS, Galileo

Group 3797

Cradle (Optional)

Wrist strap, protection cover

Group 3014

Communication

GSM, WCDMA, 4G, Wi-Fi 2.4G/5GHz, BT 5.0, eSIM(Optional)

Path 14188

Power

5V 2A USB Type-C Charging

SCANNER

Scanner

All major 1D & 2D symbologies EAN 13 (5mil) 100mm-245mm Code 39 (5mil) 90mm-345mm PDF417 (4mil) 120mm- 160mm ааемаихиопооттьзозти QR (15mil) 55mm-375mm me rego soeed is uo o a umes sec

weight

Total Weight

262g (0.57IB)

Group 3791

Environment

Drop (Multiple): 1.5m (5ft) to concrete per MIL-STD 810H. ESD: ‡15 kV Air and +8 kV Direct IP 67 dust and waterproof rating

battery

battery

4.45V 5000mAh Last for 1 day
