W-Q3 Pro

Handheld Smart terminal

  • Wide range of payment types: Credit, Debit, Closed-loop, Pre-paid

  • Omni-channel payment: Chip insert, Contactless tap, E-wallet, Barcode scan

  • Certifications:PCI PTS, TQM, SRED, RoHs, FCC, CE EMV L1 & L2, EMV CL L1 PayPass, PayWave, ExpressPayD-PAS, Interac Flash L2, Jspeedy.

  • Remote management: Integrated terminal management system(TMS).

  • Integration options:Semi-integration with developer-friendly SDKs + APIs, All-in-one with apps running locally on the device
Download Datasheet

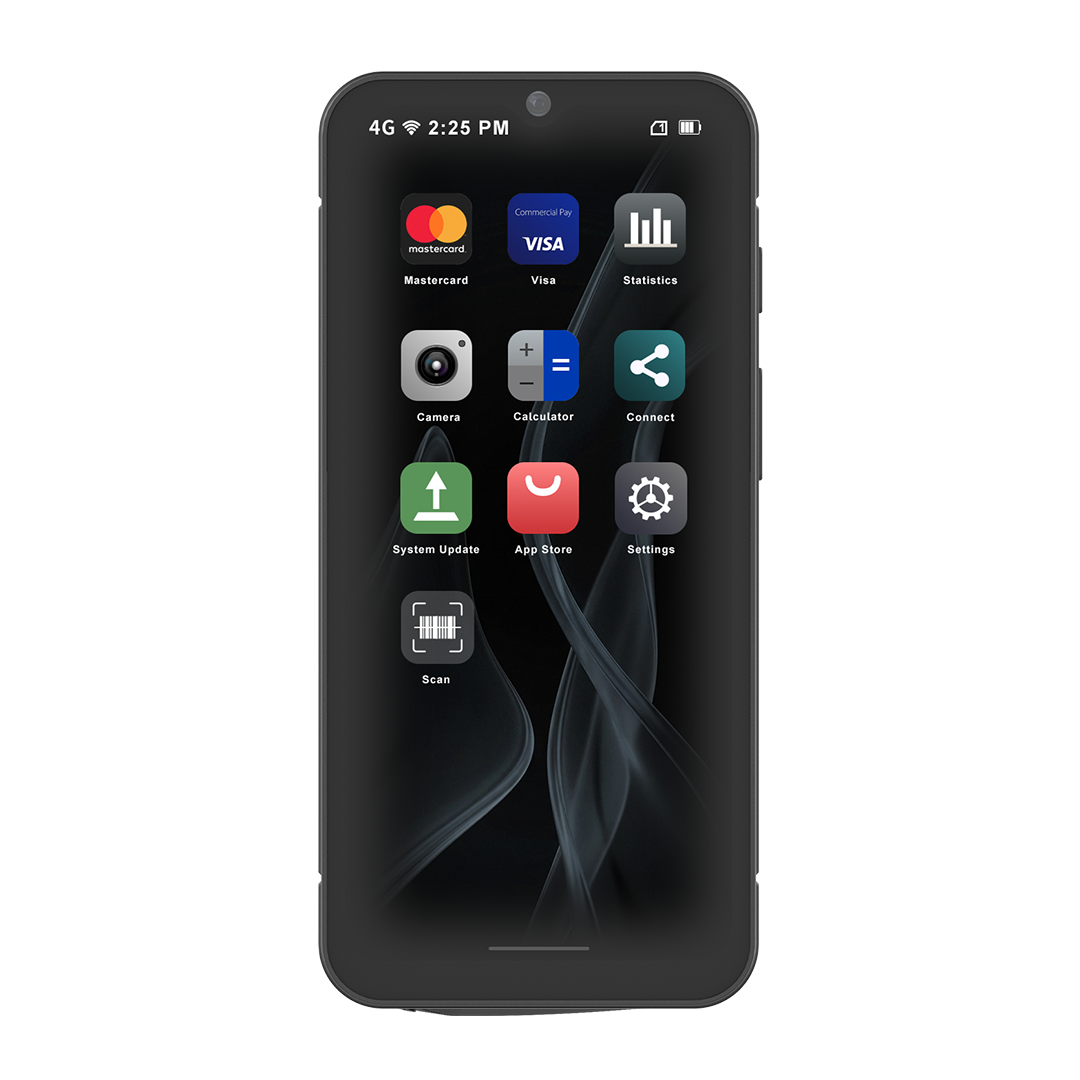

Q3 pro front

Mobile Terminal Offer

6.5" Touch screen display for hand-held or countertop flexibility

Pin on glass featuring a smooth transaction flow

Omni-channel acceptance (chip, contactless, digital wallet, pre-paid, barcode)

M12_standard_multiangle

Contactless

ISO 14443 Type A & B, MIFARE, SONY
Felica, Chip card reader ISO 7816

PCI PTS 6.x, SRED, EMV Level 1 & Level 2, EMV CL L1, TQM, PayPass,
PayWave, ExpressPAY, D-PAS, Anatel, Interac Flash L2, Rupay , MIR, Jspeedy, RoHs, FCC, CE


On-Screen contactless payment

Camera

Front-facing 2MP FF or Scanner
Rear 5MP AF

USB

USB Type-C OTG,USB
HS compliance

Magstripe Reader

Optional Configuration

Biometric

Capacitive fingerprint sensor (optional) option 1:20*32 mm,500 DPI, fake fingerprint detection, ISO 19794-2

Option 2:20*32 mm, 508 DPI, supporting ANSI-378 & ISO 19794-2 (FBI, FIPS201, and STQC certified)

Facial recognition (Optional)

SPECIFICATIONS

Processor

CPU

Qualcomm Quad-Core @ 2.0GHz

CompositeLayer

OS

Secure Android 14

Memory

Memory

2GB RAM + 32GB Flash or 4GB RAM + 64GB Flash

display

display

6.5" multi-touch color LCD panel (720 × 1600)

chip card

Card Slot

SIM Slot x1 + TF Slot x1 or SIM Slot x2

security

Security

PCI PTS certified

CompositeLayer

NFC Contactless

ISO 14443 Type A & B MIFARE Sony Felica

Group 3581

Chip card reader

ISO 7816

Path 14188

MSR (Optional)

ISO 7811, Track 1/2/3, Bi-direction

SCANNER

Scanner(Optional)

Zebra Scanner

WIFI

GPS

GPS, A-GPS

CompositeLayer

Dimensions (L*W*H)

78 × 166 x 16.6 mm (3.07 x 6.54 x 0.66 inches)

Group 3014

Communication

GSM, WCDMA, Wi-Fi 2.4/5 GHz BT 5.0, eSIM(Optional)

Path 4751

Power

5V 2A, USB Type-C Charging

3

Camera

Front-facing: 2MP Scanner Rear: 5MP

weight

Total Weight

357g (0.79 Ib)

Group 3791

Environment

Operating temperature: -10°C ~ 50°C Storage temperature: -20°C ~ 70°C Relative humidity (non-condense): 5% ~ 95%

battery

battery

3.8V / 5000mAh Last for 12 hours

Group 3797

Cradle (Optional)

Case. Handbelt. Countertop stand
